PURROS PG-13Q Sheeting Metal Drill Bit Grinder, Grinding Ranges Dia.: Φ4-Φ14, Grinding Point Angle: 110°-140°, Power: AC220V/50Hz
We supply compact machining devices such as drill bit grinder in different models bearing variations in drilling capacities and are suitable for complicated and minute drill bits efficiently.
Description
Description
PRODUCT INSTRUCTION
1. PURROS PG-13Q can be used to grind the sheet metal drill and stepped drill.
2. Best metal sheet machinery in china is accurate and rapid, easy to operate, without requiring professional skills to grind.
3. With diamond grinding wheel, it is accurate and durable.
APPLICATION
SPECIFICATION
| Model: | PG-13Q |
| Range: | Φ4-Φ14 |
| Angle: | 110° ~140° |
| Voltage: | 220V |
| Frequency: | 50HZ |
| Speed: | 5300RPM |
| Volume: | 32*23*24CM |
| Weight: | 14KG |

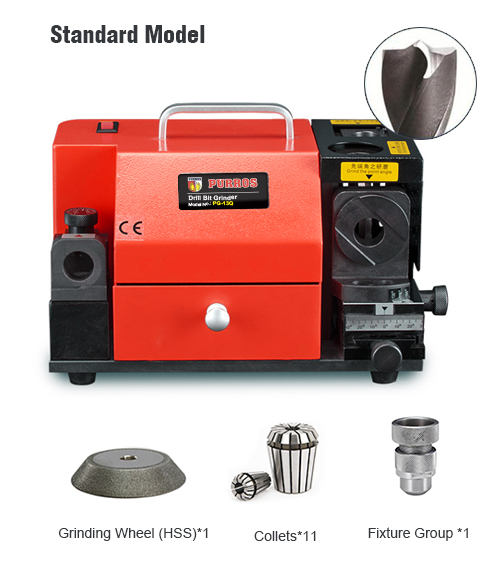

| Standard Model: | Grinding Wheel: CBN (for HSS)*1 |
| Types of Collet: Φ4, Φ5, Φ6, Φ7, Φ8, Φ9, Φ10, Φ11, Φ12, φ13, Φ14 | |
| Spec of Collet Chuck: (Φ4-Φ14)*1 | |
| Optional Model: | Grinding Wheel: SDC (for Carbide)*1 |
Reviews (1)
1 review for PURROS PG-13Q Sheeting Metal Drill Bit Grinder, Grinding Ranges Dia.: Φ4-Φ14, Grinding Point Angle: 110°-140°, Power: AC220V/50Hz
You must be logged in to post a review.
Nick Mullin –
Hey! This works pretty good. I was skepticle but after using it I am amazed.
