PURROS PG-26A Portable Twist Drill Bit Sharpener, Grinding Ranges Dia.: (8)Φ13-Φ26(Φ32), Grinding Point Angle: 90°(85°)-140°, Power: AC220V/250W
Portable grinder of twist drill bit is PG-26A.
Portable idiot drill grinder, twist drill grinder.
Description

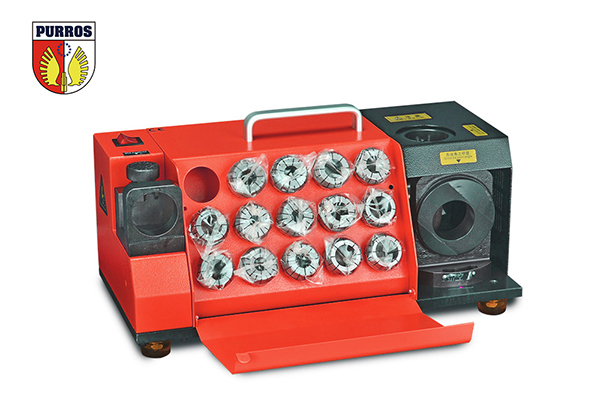

PURROS PG-26A Portable Grinder of Twist Drill Bit Sharpener
Grinding is accurate and rapid, easy operation, and without requiring professional skills to grind.
PRODUCT INSTRUCTION
The grinder is portable, easy operation, accurate and fast.
Grinding is accurate and rapid, easy operation, and without requiring professional skills to sharpen.
Portable idiot drill bit grinder, twist drill bit grinder machine.
1. Grinding is accurate and rapid, easy operation, and without requiring professional skills to sharpen.
2. Economical price that greatly reduces the cost and improves the efficiency.
3. With diamond grinding wheel, it can be equipped directly with an accurate angle and longer service life.
4. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5. Bearing shaft and locking unit.
6. The bit grinder machine is equipped with the function of adjusting the static point (central point), which can automatically coordinate according to the drilling material and the rotation speed. It can be controlled the quality precision and extend the service life of the drill bit.
| Model: | PG-26A |
| Grinding Range: | (8)Φ13-Φ26(Φ32) |
| Point Angle: | 90°(85°)~140° |
| Power: | AC220V |
| Motor: | 250W |
| Speed: | 4400RPM |
| Dimension: | 50×26×27CM |
| Weight: | 31KG |
| Standard Model: | Grinding wheel :CBN (for HSS)×1 |
| Fourteen ER40 collets: Φ13,Φ14,Φ15,Φ16,Φ17,Φ18,Φ19,Φ20,Φ21,Φ22,Φ23,Φ24,Φ25,Φ26 | |
| Collet chuck:(Φ8-Φ30)×1 | |
| Option Model: | Grinding wheel :SD (for Carbide) |
| ER 40 Collets: Φ8, Φ9, Φ10, Φ11, Φ12, Φ27, Φ28, Φ29, Φ30,Φ31,Φ32 | |
| Collet chuck:Φ31-Φ32 |
