PURROS PG-U3 Universal Graver Sharpener, Max. Grinding Dia.: Φ18mm, Power: 1/3HP 220V/380V 50Hz, Grinding Wheel Size: 100×50×20mm
The PG-U3 of universal cutting grinder can be used to grind all kinds of unilateral or multilateral edges of high speed and carbide-tipped cutting tools. We are Universal Cutting Grinding Machine Manufacturer in China. Welcome to buy PURROS PG-U3 universal cutter grinder.
Description
ADVANTAGES
The PG-U3 of universal cutting grinder can be used to grind all kinds of unilateral or multilateral edges of high speed and carbide-tipped cutting tools. PG-U3 for grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters. The indexing head of grinder can be worked in 24 directions that is easy to grind any angles and shapes, just simply replace the attachment of the dividing head without any complicated steps, that can be grinded end milling cutter, graver, drill bit, lathe tool (turning tool), and ball-end cutter, etc.
The cutter holder is full bearing type, with high accuracy, longer service life; can be used for grinding mill cutter, lathe tool (turning tool), and drill bit. The U3 of universal cutting grinder is equipped with carborundum wheel.
SPECIFICATION
| Model: | PG-U3 |
| Max. collet capacity: | Φ18 |
| Max. grinding dia.: | Φ18 |
| Taper angle: | 0~180° |
| Relief angle: | 0~45° |
| Negative angle: | 0~25° |
| Motor: | 1/3HP 220V/380V 50Hz |
| Grinding spindle: | 5300RPM |
| Grinding wheel: | Φ100×Φ50×Φ20 |
| Dimension: | 55×46×49CM |
| Weight: | 55KG |

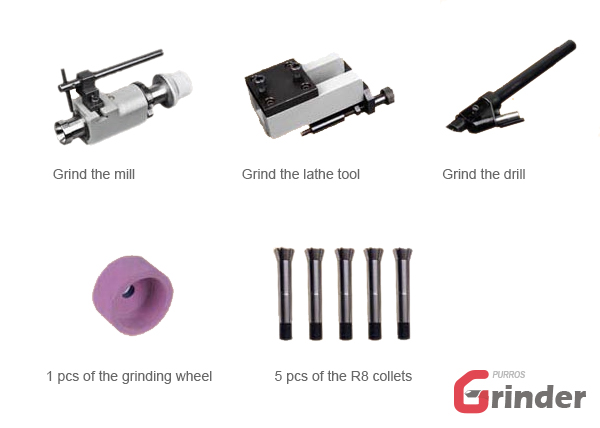

| Standard Equipment： | Types of collet: Φ4, Φ6, Φ8, Φ10, Φ12 |
| Grinding Wheel ×1 | |
| Twist drill grinding attachment×1 | |
| End mill grinding attachment×1 | |
| Lathe tools grinding attachment×1 | |
| Option Equipment： | Types of collets: Φ3, Φ4, Φ5, Φ6, Φ8, Φ9, Φ10, Φ12, Φ14, Φ16, Φ18, Φ20, Φ22, Φ25 |
1 review for PURROS PG-U3 Universal Graver Sharpener, Max. Grinding Dia.: Φ18mm, Power: 1/3HP 220V/380V 50Hz, Grinding Wheel Size: 100×50×20mm
You must be logged in to post a review.
B. Oconnell –
Great product that works well & will safe moneny. This really works well. Got tired of replacing drill bits after burning them up. Other viewers are correct when they say read the directions & watch the operating instruction showing how to use. Without that, it would be impossible to figure out. After watching the operating instruction I sharpened my 1st dull bit. Worked like a charm! It was just as sharp as a new one. Preceded to sharpen a bunch of other bad bits. The process got easier and quicker with good results! In all I sharpened 7-8 bits in 20 minutes. I even did 1 split tip which also turned out well. This will defiantly save me money in the long run. I know I have another 15-20 bits laying around that I will take care of soon. Very pleased with this purchase & recommend it to any self hobbyist or DIY person/mechanic that goes though bits!
